WIRE STRAIGHTENING MACHINE
Wire is an indispensable semi-finished product in many industries, including automotive, electrical engineering and medical technology. The quality of the wire significantly determines its suitability for further processing. Supertek provides precise, customizable wire straightening machines to meet these demands.

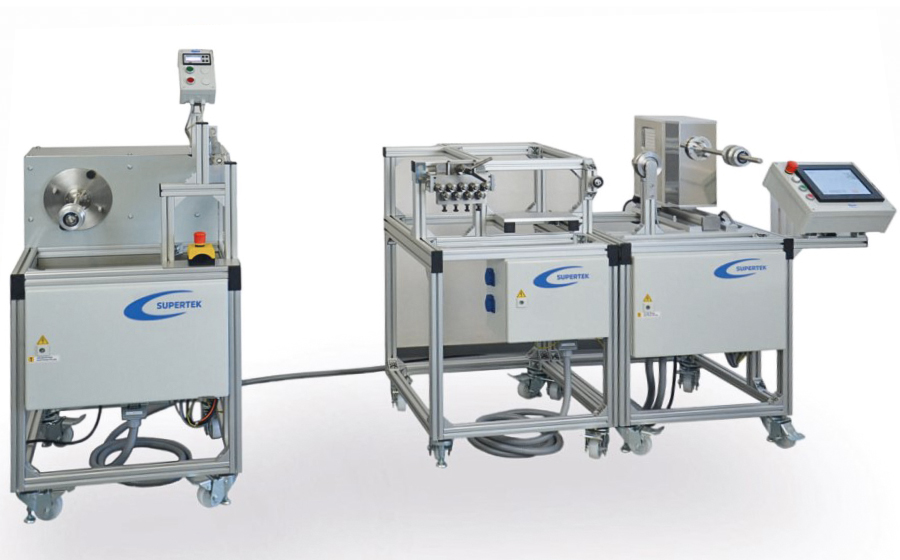

Wire straightening Machine
Operating Principle
Wire straightening machines remove bends and residual stresses from the wire by passing it over alternating sets of straightening rolls. The number and positioning of these rolls are critical to the straightening quality. Especially for fine wire, a tight roll pitch is required to avoid material deformation.
Modular Design of a Wire Straightening Line
A typical line consists of:
-
Uncoiler with tension-controlled decoiling to ensure uniform wire feeding.
-
Straightening unit, the heart of the machine, with a variable roll configuration depending on wire diameter and material.
-
Haul-off unit, which ensures consistent wire passage through the system and prevents recoil deformation.
-
Recoiler with traversing MW-class winder for clean and tension-free winding.
Technical Features
We rely on modern controls with features such as automatic diameter adjustment and easy integration into production lines. High system availability and ease of maintenance are a priority.
Areas of Application
The wire straightening machines are suitable for:
✅ Automotive suppliers (springs, wire-formed parts)
✅ Medical technology (precise surfaces and tight tolerances)
✅ Electrical engineering and mechanical engineering (cable cores, flat wire)

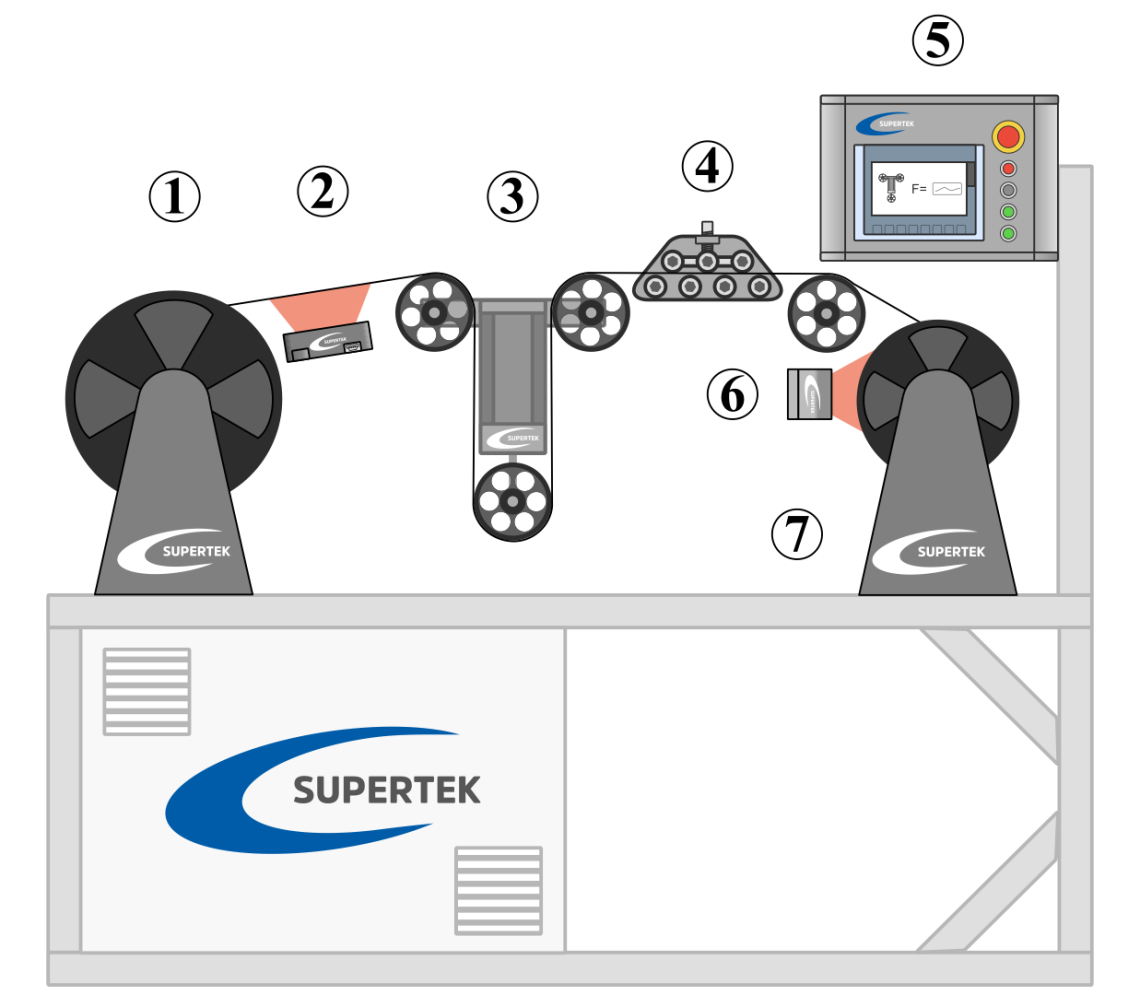

Wire Straigthening Process
- pay-off unit, Unwinder
- Position Scanner
- Dancer
- Straightening Tool
- HMI
- Spool Scanner
- take-up, Rewinder
Supertek offers flexible and precise wire straightening machines for both standard and high-precision applications, customizable to individual customer requirements.
