TENSION METER FOR WIRE AND FIBER
The calibratable measurement of the tensile stress of a wire or fiber is carried out with the TMS tensile stress meter from Supertek. In a tensile stress range up to 100 N, 10 identical measuring devices with different measuring ranges are available. The tension meters can also be used as wire tension meters or thread tension meters for industrial applications. The position of the deflection rollers can be adjusted so that precise measurement without angular deviation is possible for different deflection rollers, wires or fibers.
Article no.:
TMS-15 bis TMS-1000

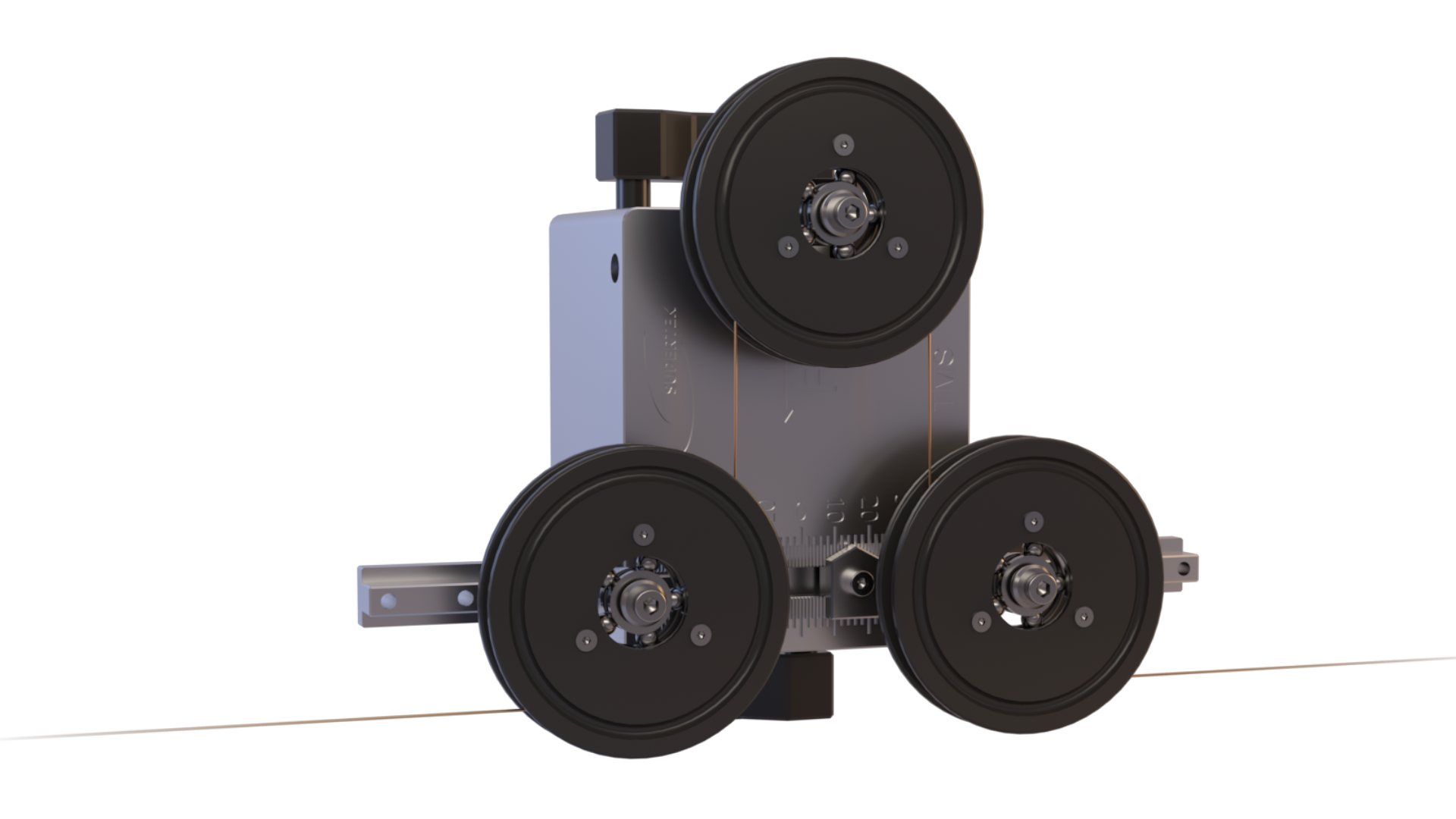

Tension Meter TMS
The TMS Tension Meter is designed for precise tension measurement across a wide range of applications. Depending on your measurement requirements, the device is available in multiple variants tailored to specific force ranges:
-
TMS-15: 0–150 g / 0–1.5 N
-
TMS-25: 0–250 g / 0–2.5 N
-
TMS-50: 0–500 g / 0–5.0 N
-
TMS-100: 0–1 kg / 0–10 N
-
TMS-150: 0–1.5 kg / 0–15 N
-
TMS-250: 0–2.5 kg / 0–25 N
-
TMS-400: 0–4.0 kg / 0–40 N
-
TMS-500: 0–5.0 kg / 0–50 N
-
TMS-750: 0–7.5 kg / 0–75 N
-
TMS-1000: 0–10 kg / 0–100 N
Each model is optimized for reliable, high-resolution tension control, supporting applications in wire winding, fiber processing and other precision-driven processes.
Note: Article numbers vary by model and measurement range. Please refer to our product documentation or contact us for selection guidance.
